Steel U-Channel Posts
U-Channel posts are simple and durable posts for mounting standard traffic signs. When choosing a post length, remember to consider that 24" to 36" of your post will be underground (unless you are using a "break-away" system).

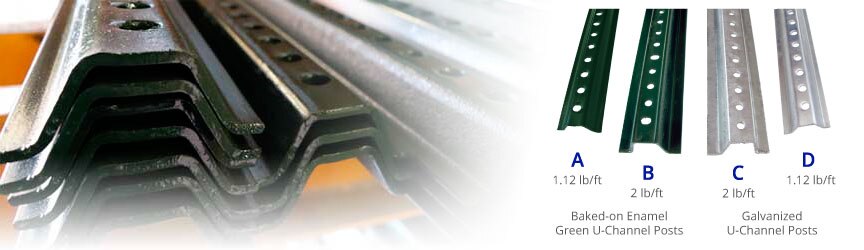

The post labeled (A) is a 1.12 lb/ft baked-on enamel green post. The one labeled (B) is a 2 lb/ft baked-on enamel green post. The post labeled (C) is a 2 lb/ft galvanized post. The one labeled (D) is a 1.12 lb/ft galvanized post.
Holes are 3/8" diameter spaced 1" on center for easy sign mounting. All U-Channel posts are tapered on one end for easy installation. The posts that are 7 foot and shorter are 1.12 lb per foot posts.
*NOTE: 10 foot posts and taller can not be shipped UPS and must be shipped by motor freight.
